Leadgo-tech launch small width breathers
News / 2020-12-04
Leadgo-tech has newly introduced a slitting machine to cut breathers into small widths. This cutting machine is controlled by microcomputer. It is functioned with automatic deviation correction, counting, tension controller and other advanced configurations. It has outstanding advantages including mechanical and electronic integration, high precision, and uniform winding.
The breather has a uniform tension during the slitting process. The cutting knife is made of tungsten steel. The breather is trimmed neatly without burrs. Its width tolerance can be controlled within 1mm.
Our company can provide small-width breathers as shown in Pic 1. The physical performances are demonstrated as in Table 1

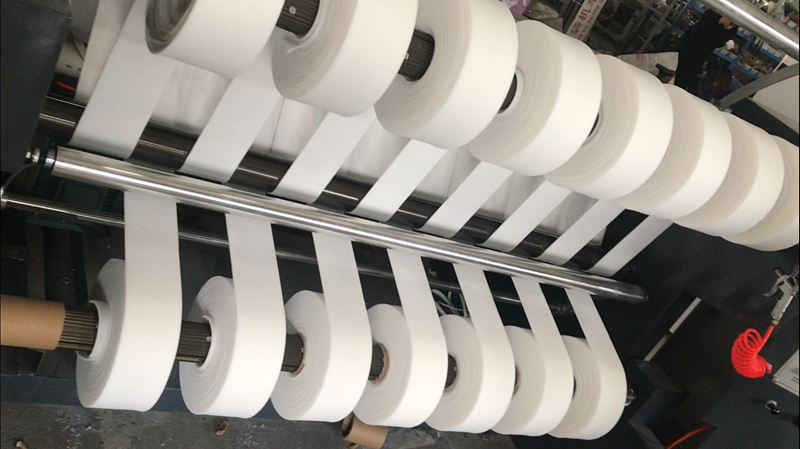

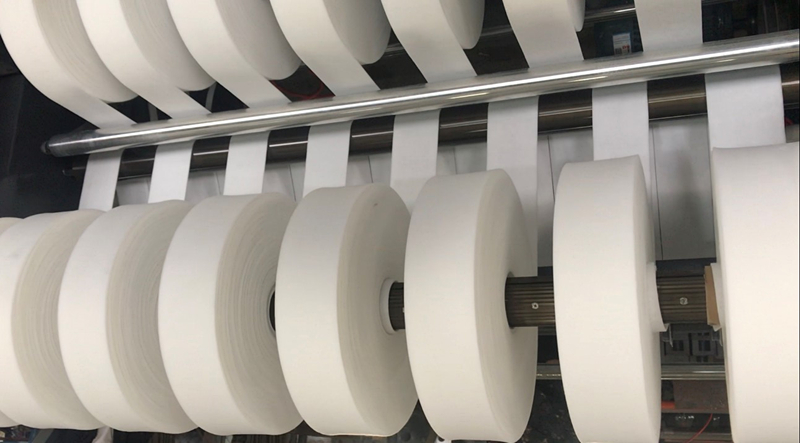

Figure 1 small width breather
Table 1 breather technical data sheet
|
mark
|
Areal weight
[g/m2]
|
Maximum use temperature
[℃]
|
width
[mm]
|
|
WF150
|
150
|
200
|
50-1520
|
|
WF330
|
330
|
200
|
50-1520
|
|
WF300N
|
300
|
230
|
50-1520
|
The small-width breathers produced by our company, including WF150, WF330, WF300N, can be customized into different sizes and specifications according to customer requirements. The slitting machine can ensure rapid processing according to production demand.
Leadgo-tech has been focusing on the research and development of high-performance vacuum process materials. The introduction of small width breather will enrich the company's product line. It will support to solve the practical problems in composites production.
